In demanding engineering applications—such as aerospace propulsion, deep-well oil drilling, automotive turbochargers, and defense systems—operating environments subject permanent magnetic materials to intense thermal stress, high mechanical loads, and severe oxidation. Under these conditions, standard magnetic materials rapidly suffer irreversible demagnetization and structural degradation.

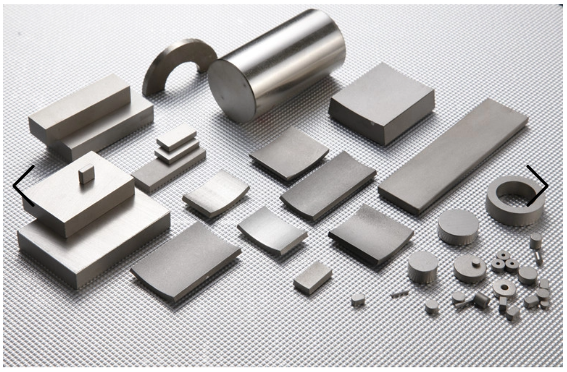

To maintain operational integrity, engineers specify Customized Anti-corrosion SmCo Magnets. Made from rare-earth alloys combining samarium and cobalt, these specialized components provide exceptional magnetic field stability at temperatures exceeding 300°C to 550°C, delivering consistent performance where other rare-earth materials fail.
Understanding why samarium-cobalt (SmCo) magnets excel under extreme heat requires examining their underlying atomic structure and magnetic characteristics. Unlike neodymium-iron-boron (NdFeB) alloys, which contain iron that oxidizes easily and loses magnetic alignment at moderate temperatures, SmCo materials rely on strong cobalt-cobalt metallic bonds that resist thermal excitation.
SmCo magnets are primarily manufactured in two main alloy compositions: $SmCo_5$ (1:5 ratio) and $Sm_2Co_{17}$ (2:17 ratio). The 1:5 alloy delivers high coercivity and easier magnetization, while the 2:17 variant offers higher energy products ($BH_{max}$) and superior resistance to thermal demagnetization at elevated temperatures.
Magnetic Metric | Samarium Cobalt (Sm2Co17) | Neodymium (NdFeB - Standard) | Neodymium (NdFeB - High Temp) |
Max Energy Product ($BH_{max}$) | 24 – 32 MGOe | 35 – 52 MGOe | 30 – 42 MGOe |
Maximum Operating Temp ($T_{max}$) | 300°C – 350°C (Up to 550°C for special grades) | 80°C | 180°C – 220°C |
Curie Temperature ($T_c$) | 700°C – 850°C | 310°C | 310°C – 350°C |
Reversible Temp Coefficient of $B_r$ | -0.03% to -0.05% / °C | -0.12% / °C | -0.08% / °C |
The Curie temperature is the point at which a permanent magnet permanently loses its spontaneous magnetic field. SmCo alloys exhibit Curie temperatures reaching 700°C to 850°C, compared to roughly 310°C for neodymium magnets. This high atomic stability prevents thermal flux degradation in mission-critical environments.
As operating temperatures rise, all permanent magnets experience a temporary drop in magnetic flux density ($B_r$). SmCo magnets feature an exceptionally low reversible temperature coefficient (roughly -0.03% per °C), maintaining stable magnetic flux across wide temperature swings.
Tip: Select $Sm_2Co_{17}$ grades for high-temperature applications requiring strong energy output, as their higher coercivity prevents knee-point demagnetization under heavy electrical loads.
Thermal stability is only one part of the challenge; high-temperature industrial environments are frequently accompanied by corrosive gases, chemical vapors, and high humidity. Because SmCo alloys contain minimal free iron, they exhibit remarkable natural resistance to corrosion and oxidation.
While neodymium magnets oxidize rapidly when exposed to moisture—requiring multi-layer electroplated coatings like nickel or epoxy—samarium-cobalt components remain structurally intact in most industrial settings without protective coatings. This inherent chemical stability simplifies manufacturing, reduces total part count, and eliminates the risk of coating flaking or micro-pinhole oxidation under continuous thermal cycling.
Note: For extreme environments—such as marine salt spray or acidic chemical processing—applying specialized anti-corrosion surface treatments provides an extra layer of protection for long-term reliability.
Because samarium-cobalt magnets retain their magnetic fields under severe environmental stress, they serve as essential components in high-reliability engineering sectors.
Industry Sector | Primary Application | Key Operational Stress Factor |
Aerospace & Defense | Actuators, radar wave tubes, jet engine sensors | Ambient temperatures exceeding 300°C, altitude pressure drops |
Energy & Oil Drilling | Downhole logging tools, mud motor sensors | High ambient heat (200°C+), corrosive drilling fluids |
Automotive | Turbocharger actuators, exhaust gas recirculation (EGR) valves | Engine bay radiant heat, continuous vibration |
Medical Devices | Sterilizable surgical tools, blood pumps | Repeated high-heat autoclave sterilization cycles |
In aircraft power systems, guided missile actuators, and turbine engine sensors, components must perform flawlessly despite rapid thermal cycling and high ambient heat. SmCo magnets deliver consistent torque and magnetic field detection without fading or requiring external cooling channels.
Downhole logging tools and drilling sensors operate thousands of meters beneath the earth's surface, where ambient temperatures frequently exceed 200°C and pressures are intense. SmCo components provide stable signal generation and magnetic coupling in these isolated, un-coolable environments.
Modern automotive power systems rely on precision actuators operating inside hot engine bays. SmCo magnets drive turbocharger wastegate actuators and exhaust gas recirculation valves, where proximity to hot exhaust manifolds would cause standard magnets to demagnetize instantly.
Tip: Use SmCo magnets in sealed surgical tools that undergo routine high-temperature steam sterilization (autoclaving) to ensure long-term device performance.
While samarium-cobalt alloys excel in thermal and magnetic performance, design engineers must account for their distinct mechanical properties during component assembly.
SmCo is a dense, brittle ceramic-like material with low tensile strength. It is susceptible to chipping or cracking if subject to sudden mechanical impacts, shock loads, or misaligned assembly forces.
Because of their high brittleness, SmCo magnets cannot be machined using standard cutting tools. Precision shapes are formed via high-speed wire Electrical Discharge Machining (EDM) or CNC diamond grinding wheels. During mechanical assembly, components should be secured using specialized adhesives, non-magnetic retention sleeves, or potting compounds rather than direct mechanical clamping forces.
Note: Design mounting housings with protective chamfers and shock-absorbing non-magnetic shims to prevent mechanical chipping during high-vibration operations.
In high-power electric motors and magnetic couplers, permanent magnets are subjected to strong reverse magnetic fields generated by stator windings. Under high-temperature conditions, these opposing fields can drive magnet operating points below their demagnetization "knee curve," causing permanent loss of magnetic output.
SmCo magnets possess an exceptionally linear demagnetization curve across their entire operating temperature range. Their high intrinsic coercivity ($H_{ci}$) ensures that even under heavy reverse field loads at temperatures exceeding 250°C, the material returns to its full magnetic output without suffering permanent losses.
Operational Factor | Impact on Standard Magnets | Impact on SmCo Magnets |
Reverse Magnetic Field | Risk of permanent demagnetization at high heat | Maintains linear $B-H$ response; highly demagnetization-resistant |
Thermal Cycling | Accumulates irreversible flux loss over time | Stable output with predictable, reversible thermal changes |
Air-Gap Load Variations | Knee-point shifts degrade performance | High coercivity maintains stable operating load lines |
Tip: Calculate dynamic load lines ($P_c = B/H$) during motor design to confirm that reverse fields remain well within the linear operating region of your selected SmCo grade.
Producing high-reliability SmCo magnets requires precise metallurgical control, high-temperature vacuum sintering, and stringent quality assurance processes.
Raw samarium and cobalt metals are melted under inert gas covers, milled into micron-scale powders, and pressed inside high-intensity magnetic orientation fields. Sintering takes place in specialized vacuum furnaces at temperatures exceeding 1,100°C to achieve full material density.

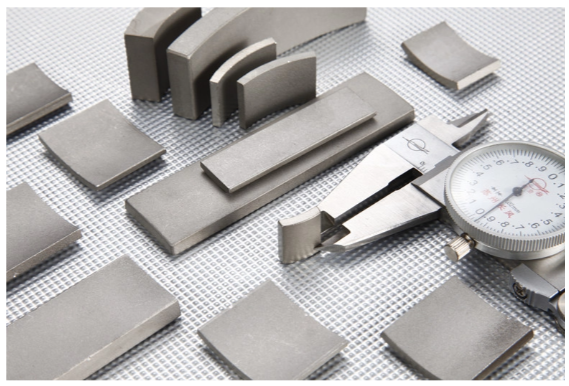

Advanced quality inspection involves verifying magnetic hysteresis loops ($B-H$ curves) at elevated temperatures using automated hysteresisgraphs and Helmholtz coils. This ensures that every production batch meets strict thermal, dimensional, and flux output tolerances required for aerospace and medical applications.
Note: Custom magnet orientation—such as radial, axial, or multi-pole configurations—can be engineered during the pressing phase to optimize flux paths in specialized motor stators.
When selecting permanent magnetic materials for high-stress applications, engineers must evaluate total life-cycle costs rather than upfront material pricing alone.
Although samarium and cobalt carry higher raw material costs than iron-based alloys, using SmCo magnets eliminates the need for complex liquid cooling systems, heavy thermal insulation, and frequent component replacements in high-heat systems. By preventing premature hardware failure in critical aerospace, energy, and automotive applications, SmCo magnets deliver superior long-term reliability and lower total cost of ownership.
Value Metric | Initial Hardware Cost | Long-Term Operational Value |
NdFeB (with Cooling) | Lower initial magnet cost | High complexity; added cooling weight, maintenance, and failure risks |
SmCo (Direct Placement) | Higher initial magnet cost | Simplified design; zero cooling overhead, maximum thermal reliability |
Tip: Evaluate total system weight and maintenance costs during early prototype design—eliminating active cooling systems often offsets the higher initial cost of SmCo materials.
Samarium-cobalt magnets remain the premier choice for critical applications where high operating temperatures, aggressive chemical exposure, and strong demagnetizing fields threaten system performance. By combining exceptional thermal stability, natural corrosion resistance, and high intrinsic coercivity, SmCo alloys allow engineers to design compact, reliable devices for demanding aerospace, energy, and industrial environments.
Selecting the proper alloy grade, mounting geometry, and structural protection ensures long-term operational reliability across multi-decade service lifespans.
To optimize your high-temperature applications, explore engineered rare-earth solutions from Shine. Shine supplies high-performance Customized Anti-corrosion SmCo Magnets, custom magnetic assemblies, and specialized rare-earth materials designed to meet rigorous international industrial standards.
A: SmCo magnets offer higher Curie temperatures, superior resistance to thermal demagnetization, and natural corrosion resistance, while Neodymium magnets deliver higher energy density at room temperature but demagnetize under high heat.
A: Standard SmCo magnets perform reliably at temperatures up to 300°C to 350°C, with specialized high-temperature grades operating in extreme environments up to 550°C.
A: Generally no; SmCo alloys contain minimal free iron and possess strong natural corrosion and oxidation resistance, though custom coatings can be applied for extreme marine or acidic conditions.
A: They maintain stable magnetic flux density under severe thermal stress, rapid temperature swings, and strong opposing magnetic fields without requiring active cooling systems.
