Modern engineering across the global industrial sector demands unprecedented levels of energy efficiency, operational precision, and compact mechanical performance. Whether powering electric vehicles, industrial conveyor systems, or high-speed robotic servo actuators, engineers rely on advanced permanent magnetic materials to achieve maximum electromagnetic output within tight spatial footprints.
By integrating specialized magnetic solutions into modern motor architectures, manufacturers can significantly reduce electrical losses, boost torque density, and ensure long-term durability under heavy industrial loads.
Electromechanical energy conversion depends on the precise interaction between magnetic fields and electrical current windings. Traditional induction motors rely on induced rotor currents, which generate internal electrical resistance and substantial waste heat. In contrast, permanent magnet synchronous motors (PMSM) utilize high-energy permanent magnets on the rotor assembly, eliminating rotor winding losses entirely.
This direct magnetic excitation allows motors to deliver higher continuous torque outputs, faster dynamic response times, and superior operational efficiency across variable speed ranges. By replacing electrical excitation with stable permanent magnetic fields, industrial equipment designers can achieve smaller overall frame sizes without sacrificing power delivery.
Motor Technology | Rotor Excitation Method | Energy Efficiency | Power Density |
Induction Motors | Induced rotor currents via stator | Moderate (Standard IE2/IE3) | Bulky and heavier |
Permanent Magnet Motors | Direct rare-earth or ferrite magnets | High (IE4 / IE5 compliant) | Compact with high torque-to-weight ratio |
Brushless DC (BLDC) Motors | Precision permanent magnet rotors | Exceptional across broad RPM | Ultra-compact micro and fractional horsepower |
Tip: Specify permanent magnet motor designs for applications requiring continuous variable-speed control to maximize overall system energy efficiency.
Spatial constraints in modern industrial machinery require components that pack maximum power into minimal volume. High-energy rare-earth alloys provide exceptional remanence and maximum energy products, allowing engineers to shrink motor diameters and reduce rotor mass drastically.
In industrial robotics and automated manufacturing lines, lighter motors reduce the inertial load on robotic arms, enabling faster acceleration rates and higher payload capacities. Furthermore, compact magnetic couplings and holding assemblies secure moving parts reliably without requiring complex mechanical gearboxes or external clamps.
Note: High torque density reduces the physical weight of industrial drives, lowering structural support requirements and simplifying machine assembly.
Global regulatory standards increasingly demand stringent energy efficiency compliance for industrial machinery, pumps, fans, and compressors. Permanent magnet motors consistently achieve IE4 and IE5 ultra-premium efficiency ratings, significantly reducing electricity consumption over multi-decade operational cycles.
By minimizing internal thermal losses, these high-efficiency motors run cooler, which extends winding insulation lifespan and reduces facility cooling loads. This reduction in electrical energy waste directly lowers carbon emissions and helps manufacturing plants meet corporate sustainability objectives.
Sustainability Metric | Standard Induction Drive | High-Efficiency Permanent Magnet Drive |
Operating Efficiency | 85% to 91% | 94% to 97%+ |
Thermal Dissipation | High internal heat generation | Minimized thermal waste; lower operating temperatures |
Power Factor | Requires external power factor correction | Near-unity power factor performance |
Tip: Conduct a total cost of ownership (TCO) analysis to demonstrate how energy savings from permanent magnet upgrades offset initial equipment costs quickly.
Different industrial applications present unique mechanical, thermal, and chemical challenges. Selecting the correct permanent magnet grade ensures that motors and equipment maintain stable performance throughout their service life.
Neodymium Magnets: For applications demanding ultra-compact footprints and maximum magnetic flux, engineers integrate high-strength Neodymium Magnets in Motors to drive high-torque EV powertrains and precision industrial servo actuators.

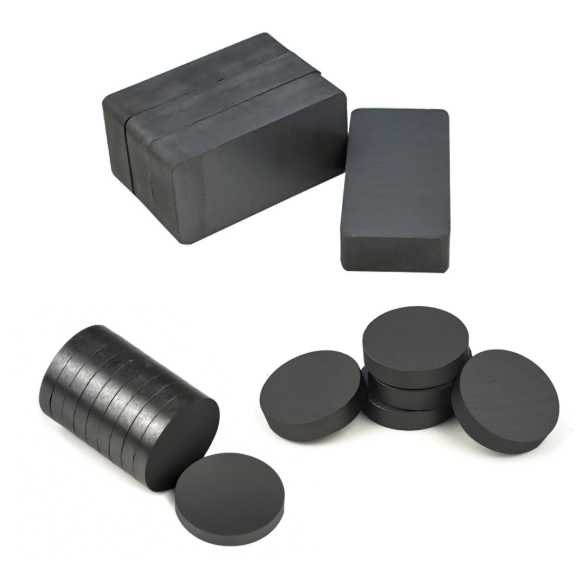

Ferrite (Ceramic) Magnets: When projects prioritize raw affordability and natural rust immunity, traditional Industrial Permanent Ferrite Ceramic Magnets provide reliable performance for high-volume appliance motors and water pumps.
Samarium Cobalt (SmCo) Magnets: In extreme heat conditions where thermal stability is paramount, specialized Customized Anti-corrosion SmCo Magnets deliver unyielding resistance to high-temperature demagnetization.
AlNiCo Magnets: For precision sensors and vintage instrumentation requiring exceptional temperature stability and stable magnetic flux, durable Powerful Permanent AlNiCo Magnets for Sale offer a trusted traditional solution.
Note: Always evaluate the maximum operating temperature and corrosive exposure levels of your work environment before finalizing your magnet grade selection.
Integrating high-performance permanent magnets into high-speed industrial motors requires careful management of thermal expansion, centrifugal forces, and demagnetization risks. As motor RPM increases, centrifugal stress pushes rotor magnets outward against retaining sleeves.
Engineers utilize high-strength non-magnetic stainless steel retention sleeves, carbon fiber wrapping, or specialized anaerobic adhesives to secure rotor magnets safely. Additionally, selecting proper thermal grades (such as high-coercivity Neodymium or SmCo alloys) prevents irreversible flux loss caused by combined high temperatures and strong armature reaction fields.
Tip: Ensure proper air-gap tolerances and thermal dissipation paths are integrated into rotor housings to prevent localized overheating during heavy-duty industrial cycles.
The reliability of modern industrial equipment depends heavily on the manufacturing precision of its magnetic components. Advanced production lines utilize automated magnetic field pressing, vacuum sintering, and high-precision diamond grinding to achieve strict dimensional tolerances.
Rigorous quality testing—including Helmholtz coil flux verification, automated hysteresisgraph scanning, and surface defect inspection—ensures that every magnetic assembly delivers consistent performance, balanced rotor dynamics, and vibration-free operation in high-speed industrial environments.
Note: Partnering with experienced manufacturers ensures custom magnetic orientation and multi-pole magnetization patterns meet your precise motor design requirements.
While advanced permanent magnet materials may carry higher initial material costs than traditional iron and copper components, their long-term operational benefits deliver superior financial returns.
By eliminating energy waste, reducing maintenance downtime, and preventing premature motor failure, permanent magnet solutions lower total lifecycle costs. Industrial facilities benefit from increased equipment uptime, lower electrical bills, and maximum productivity across automated production lines.
Economic Factor | Upfront Investment | Long-Term Operational Impact |
Standard Induction System | Lower upfront equipment cost | Higher ongoing electricity consumption and maintenance |
Permanent Magnet System | Higher initial component cost | Substantially lower energy bills, zero slip losses, extended lifespan |
Tip: Consult with specialized magnetic solution providers early in your engineering design phase to optimize custom shapes, reduce tooling expenses, and maximize equipment performance.
Permanent magnets serve as the critical technological foundation enabling modern, high-efficiency motor and industrial equipment designs. By delivering superior torque density, ultra-high energy conversion efficiency, and compact form factors, advanced magnetic materials empower engineers to solve complex industrial automation challenges.
Selecting precise magnetic grades, durable protective coatings, and optimized circuit geometries ensures long-term operational reliability across demanding manufacturing environments.
To achieve superior performance for your industrial motors and equipment, explore engineered solutions from Shine. Shine supplies high-performance neodymium magnets, ferrite magnets, SmCo magnets, AlNiCo magnets, and custom magnetic assemblies tailored to meet rigorous international industrial standards.
A: Permanent magnet motors eliminate rotor electrical currents and associated winding resistance losses, resulting in higher operational efficiency, reduced thermal waste, and higher torque density.
A: Samarium-cobalt (SmCo) magnets are ideal for high-temperature environments because they maintain stable magnetic flux and high demagnetization resistance at temperatures exceeding 300°C.
A: Because rare-earth magnets deliver exceptional magnetic energy density, engineers can design smaller motor housings and lighter actuators that produce equal or greater torque compared to bulky conventional designs.
A: Yes, permanent magnet synchronous motors (PMSM) and brushless DC motors require electronic variable-frequency drives (VFD) to precisely control stator magnetic fields and rotor synchronization.
