Modern engineering trends demand smaller, lighter, and more powerful electronic devices and industrial machinery. Meeting these strict size and power requirements requires advanced magnetic materials with exceptional flux density. Rare-earth neodymium magnets (NdFeB) serve as the primary engineering solution for miniaturizing components without sacrificing electromagnetic output. By delivering unprecedented magnetic energy density, rare-earth alloys allow design engineers to drastically shrink form factors across automotive powertrains, consumer electronics, medical instruments, and aerospace automation systems.
Understanding how these permanent magnetic materials operate under mechanical, thermal, and environmental stress allows product development teams to maximize energy output while reducing overall manufacturing costs.
Understanding why rare-earth alloys outperform traditional ceramic ferrite or AlNiCo materials requires examining key intrinsic magnetic metrics. Neodymium alloys offer an unmatched maximum energy product ($BH_{max}$), high remanence ($B_r$), and superior intrinsic coercivity ($H_{ci}$), making them ideal for high-stress applications where spatial constraints prevent the use of bulky ceramic alternatives.
Magnetic Parameter | Ferrite (Ceramic) | Samarium Cobalt (SmCo) | Neodymium (NdFeB) | Engineering Advantage |
Max Energy Product ($BH_{max}$) | 2 – 5 MGOe | 18 – 32 MGOe | 33 – 52+ MGOe | Delivers up to 10x higher magnetic flux per unit volume |
Remanence ($B_r$) | 3,500 – 4,500 Gauss | 8,500 – 11,500 Gauss | 11,000 – 14,800+ Gauss | Provides intense flux density in ultra-compact form factors |
Intrinsic Coercivity ($H_{ci}$) | 2,500 – 4,000 Oe | 15,000 – 25,000 Oe | 12,000 – 35,000+ Oe | Prevents demagnetization under heavy mechanical loads |
The maximum energy product represents the total magnetic energy stored per unit volume of material. Because rare-earth alloys achieve $BH_{max}$ ratings well over 50 MGOe, engineers can reduce magnetic component volume by up to 80% while retaining equivalent flux strength in working air gaps.
High intrinsic coercivity measures a material's physical ability to resist demagnetization when exposed to strong external opposing magnetic fields, severe mechanical shocks, or elevated operating temperatures. This high demagnetization resistance allows engineers to design extremely thin magnet profiles without risking permanent flux loss during sudden peak power surges.
Tip: Specify high-coercivity grades (such as SH, UH, or EH) when designing compact motors subjected to elevated working temperatures or strong demagnetizing fields.
High magnetic field strength per millimeter enables technological breakthroughs across multiple high-tech manufacturing sectors. Compact electric vehicles rely heavily on high-power-density permanent magnet synchronous motors (PMSM), where utilizing specialized Neodymium Magnets in Motors minimizes overall rotor weight, boosts continuous motor efficiency, and extends total vehicle driving range per battery charge cycle.

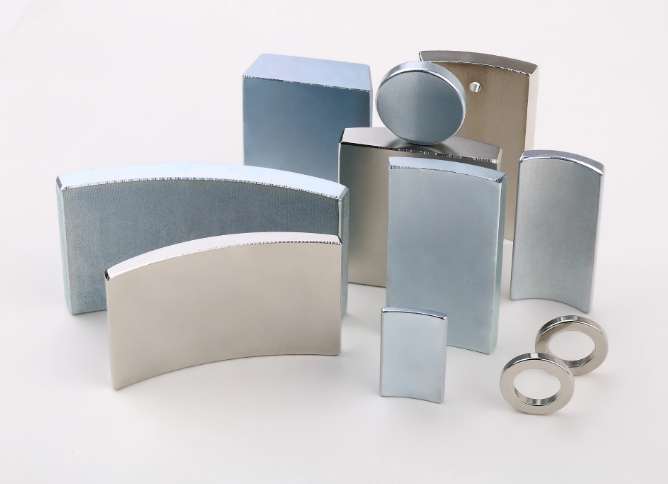

Consumer electronics like smartphones, wireless earbuds, and wearable medical devices require micro-scale actuation hardware. Precision sintered block and ring magnets, such as high-grade Neodymium Magnets in Smartphones, drive ultra-thin acoustic drivers, voice coil motors (VCM) for optical camera stabilization, and tactile haptic feedback units. Additionally, automated industrial robotic joints require maximum torque output from lightweight, compact enclosures, where high-flux magnetic arrays reduce actuator weight to enable faster arm dynamics and higher payload capabilities.
Note: Grain boundary diffusion (GBD) technology increases high-temperature coercivity while reducing heavy rare-earth usage, optimizing thermal stability for industrial motor applications.
Because sintered NdFeB material contains high iron content (typically 65% to 70% by weight), raw un-coated components oxidize rapidly when exposed to humid or chemically aggressive operating environments. Applying specialized metallic or organic surface coatings seals the underlying sintered structure, protecting physical integrity and ensuring long-term magnetic field stability across extended service lives.
Protective Coating | Layer Thickness | Corrosion Resistance (Salt Spray) | Ideal Application Environment |
Nickel-Copper-Nickel (Ni-Cu-Ni) | 10 – 25 µm | 24 – 96 Hours | Standard indoor electronics, sensors, motor enclosures |
Epoxy Coating (Black/Clear) | 15 – 30 µm | 96 – 240+ Hours | High-humidity environments, marine tech, medical devices |
Zinc (Zn) Plating | 5 – 15 µm | 24 – 48 Hours | Cost-sensitive structural assemblies and indoor hardware |
Parylene Film | 1 – 10 µm | Extremely High (Pinhole-Free) | Medical implants, cleanroom sensors, aerospace hardware |
Multi-layer Ni-Cu-Ni electroplating offers excellent mechanical wear resistance, clean metallic aesthetics, and reliable protection for indoor consumer electronics, sealed sensor housings, and enclosed electric motor assemblies.
Epoxy barrier coatings provide superior fluid insulation, salt-spray resistance, and cross-linked dielectric strength. This moisture seal prevents galvanic corrosion when magnets are mounted directly against aluminum housings or exposed to outdoor elements.
Tip: Choose black epoxy or Parylene coatings for outdoor sensors or marine equipment to prevent micro-pinhole oxidation and premature mechanical degradation.
Operating temperatures significantly impact permanent magnet performance. Selecting the correct thermal grade prevents temporary flux loss or permanent demagnetization during heavy-duty operations. Magnets are classified by their maximum energy product followed by thermal suffix letters indicating their maximum recommended operating temperature ($T_{max}$).
Temperature Grade Suffix | Max Operating Temp (Tmax) | Max Intrinsic Coercivity (Hci) | Typical Application Field |
N (Standard) | 80°C (176°F) | ≥ 12,000 Oe | Consumer electronics, office hardware |
M (Medium) | 100°C (212°F) | ≥ 14,000 Oe | Audio speakers, consumer power tools |
H (High) | 120°C (248°F) | ≥ 17,000 Oe | Precision servo motors, sensors |
SH (Super High) | 150°C (302°F) | ≥ 20,000 Oe | Automotive actuators, elevator motors |
UH (Ultra High) | 180°C (356°F) | ≥ 25,000 Oe | EV traction powertrains, wind turbines |
EH / AH (Extreme High) | 200°C – 220°C (428°F) | ≥ 30,000 Oe | Aerospace power systems, extreme environment motors |
Operating below a grade's rated $T_{max}$ incurs temporary reversible thermal flux loss, which recovers fully once the material cools down to ambient temperatures. Exceeding maximum working thresholds, however, causes permanent irreversible demagnetization that permanently degrades motor performance and requires hardware replacement.
Note: Calculate real-world air-gap load lines ($P_c = B/H$) during system design to verify that operating temperatures do not drop magnet working points below knee curves.
Maximizing magnetic performance requires optimizing flux path geometry, working air gaps, and structural mounting enclosures. Arranging neodymium magnets in Halbach arrays—where individual blocks feature spatially rotating magnetization directions—concentrates working flux along one functional face while canceling stray fields on the back side. This setup dramatically increases motor torque density without requiring heavy iron back-iron shielding plates.
In specialized audio engineering, integrating high-performance Neodymium Magnets in Loud Speakers enables rapid voice-coil acceleration and crystal-clear sound replication inside miniature acoustic cavities. Integrating brittle sintered alloys into high-speed electric rotors requires precision structural engineering. Designers utilize high-strength anaerobic adhesives, non-magnetic stainless steel retention sleeves, or carbon fiber wrapping to resist extreme centrifugal forces during high-RPM operations.
Design Parameter | Engineering Target | Performance Outcome |
Air-Gap Distance | Minimize distance to active load | Maximizes magnetic flux density across working zones |
Steel Backing Plates | High-permeability low-carbon steel | Redirects flux, closes magnetic loops, prevents stray fields |
Halbach Array Layout | Augment field strength on one side | Concentrates working fields while shielding external circuits |
Tip: Utilize low-carbon steel (such as 1010 or 1018) for magnetic circuit flux return paths to minimize saturation losses.
Producing high-precision permanent magnets requires strict metallurgical alloy control, automated magnetic orientation pressing, and advanced diamond machining processes. Sintered NdFeB blocks are sliced into intricate geometric shapes using high-speed multi-wire Electrical Discharge Machining (EDM) and CNC diamond grinding wheels, consistently achieving dimensional tolerances as tight as $\pm 0.02 \text{ mm}$.
Advanced quality control relies on Helmholtz coils, automated hysteresisgraphs, and 3D Gaussmeter scanning arrays to verify $BH_{max}$ demagnetization curves, surface flux uniformity, and thermal stability thresholds across mass production batches. Modern grain boundary diffusion (GBD) methods inject dysprosium (Dy) or terbium (Tb) heavy rare-earth elements exclusively along crystal boundaries, reducing total heavy rare-earth usage by up to 70% while enhancing high-temperature coercivity and supporting sustainable manufacturing practices.
Note: Advanced grain boundary diffusion (GBD) methods lower Dy/Tb heavy rare-earth content by up to 70%, supporting environmental sustainability and reducing raw material costs.
Selecting high-efficiency permanent magnets directly drives long-term commercial value and total system return on investment.
Value Driver | Commercial Impact | Long-Term Advantage |
Material Efficiency | Higher initial flux density reduces required raw alloy weight | Lower total assembly mass and housing material costs |
Energy Efficiency | Reduces operating electrical losses in motors and generators | Lower energy bills and compliance with strict efficiency standards |
System Reliability | Stable magnetic flux over multi-decade operational cycles | Reduced field warranty claims and extended equipment lifespans |
Although rare-earth alloys carry higher initial raw material costs than ceramic ferrite magnets, their dramatic performance density allows engineers to significantly downsize copper wire windings, electrical steel laminations, and structural enclosures. This overall component reduction yields lower net manufacturing costs for complete motor or sensor assemblies. For specialized packaging design, compact components like Neodymium Magnets in Costimestic Packaging provide concealed, high-force magnetic latches in compact luxury enclosures. Next-generation technology trends focus on developing ultra-high-temperature grades, refining closed-loop rare-earth recycling, and utilizing additive manufacturing to create complex 3D magnetic flux paths.
Tip: Partner with certified magnet suppliers early in the prototype design phase to select cost-effective standard shapes and avoid custom tooling fees.
Neodymium magnets serve as a foundational technology enabling lightweight, ultra-compact, and energy-efficient product designs across modern engineering disciplines. By delivering superior flux density and high energy products, these advanced rare-earth alloys allow engineers to solve complex miniaturization challenges in automotive, medical, consumer, and industrial sectors.
Selecting precise magnetic grades, durable protective coatings, and optimized circuit geometries ensures long-term operational reliability and maximum system efficiency.
To achieve superior performance for your custom applications, explore advanced magnetic solutions from Shine. Shine delivers high-performance neodymium magnets, custom magnetic assemblies, and engineered rare-earth solutions tailored to meet demanding global industry standards.
A: Their unique tetragonal $Nd_2Fe_{14}B$ crystal structure creates exceptionally high saturation magnetization and magnetocrystalline anisotropy, delivering up to 10 times higher energy density than ferrite materials.
A: Because a smaller neodymium magnets volume generates equivalent or superior flux density compared to larger ceramic magnets, engineers can dramatically shrink motor housings, voice coils, and actuator assemblies.
A: Standard N-grade magnets operate up to 80°C (176°F), but specialized high-temperature grades (such as UH, EH, and AH) perform reliably in demanding environments reaching 180°C to 220°C.
A: Their high iron content makes un-coated sintered material susceptible to rapid oxidation and corrosion in moist environments; protective coatings like Ni-Cu-Ni or epoxy seal the magnet structure to maintain long-term integrity.
