The Role of Magnetic Assemblies in Customized Industrial Applications

Modern industrial engineering frequently encounters complex spatial, mechanical, and environmental constraints that standard off-the-shelf permanent magnets cannot resolve. Whether securing heavy precast concrete formwork, extracting microscopic ferrous contaminants from high-speed food processing lines, or holding precision workpieces during automated CNC machining, standard bare magnets often lack the structural housing required for heavy-duty deployment.

To overcome these engineering challenges, manufacturers rely on specialized Magnetic Assemblies. By combining high-energy permanent magnets with precision-engineered steel housings, mounting brackets, and protective coatings, magnetic assemblies concentrate magnetic flux, protect brittle materials, and provide robust mechanical attachment points for demanding industrial environments.

1. The Engineering Principles Behind Magnetic Assemblies

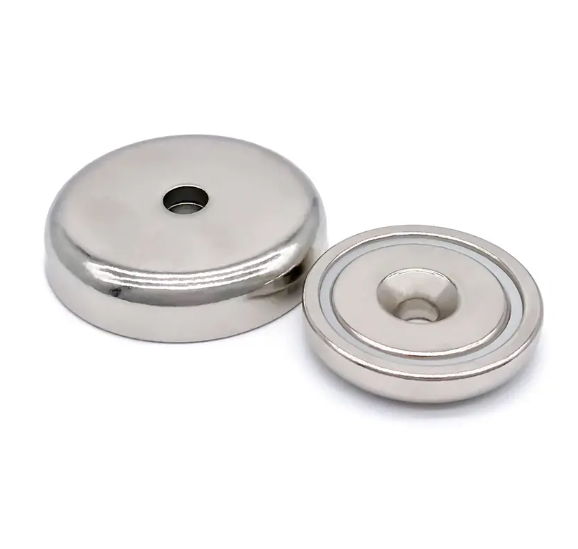

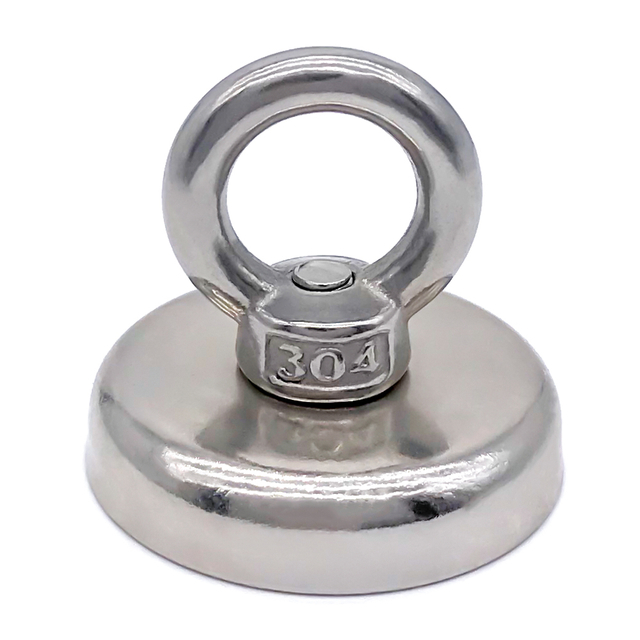

A standard permanent magnet radiates magnetic flux in all directions, which can lead to scattering, unintended attraction, and vulnerable exposed surfaces. Magnetic assemblies utilize steel flux-closure channels—often called pot magnets or magnetic channels—to redirect magnetic lines of force into a single, highly concentrated working face.

This directional channeling dramatically increases the holding force (pull force) on direct contact surfaces, allowing a compact assembly to lift or secure weights hundreds of times heavier than its own mass. Furthermore, enclosing magnets within protective steel cups shields the brittle magnetic core from physical impact, thermal shock, and mechanical fracture during high-vibration operations.

Tip: Utilize steel shell enclosures to redirect stray magnetic fields into the contact surface, maximizing holding power while protecting the internal magnet from mechanical impact.

2. Enhancing Mechanical Stability and Load-Bearing Security

In heavy industrial machinery and automated manufacturing plants, holding components securely under continuous vibration and shear stress is critical for operational safety. Bare sintered magnets have low tensile strength and can easily shear or shatter if subjected to lateral sliding forces.

Magnetic assemblies solve this vulnerability by integrating threaded studs, mounting holes, rubber coatings, or clamping flanges directly into the steel housing. These integrated attachment features allow engineers to bolt, screw, or weld magnetic units securely into automated assembly jigs, overhead material handling systems, and conveyor guide rails, ensuring high shear resistance and reliable load-bearing performance.

Note: When designing vertical holding applications, always account for shear force limitations, as sliding resistance is significantly lower than direct perpendicular pull force.

3. Protecting Brittle Materials in Harsh Operating Environments

Permanent magnetic materials such as neodymium (NdFeB) and samarium-cobalt (SmCo) offer exceptional energy density, but they are inherently brittle and susceptible to environmental corrosion. When exposed to moisture, chemical coolants, or abrasive industrial debris, unshielded magnets degrade rapidly.

Customized magnetic assemblies provide a robust physical barrier. By encasing magnets in stainless steel (such as 304 or 316 grades), brass, or vulcanized rubber, manufacturers create completely sealed units that resist moisture, harsh cleaning chemicals, and abrasive wear. This protective encapsulation makes magnetic assemblies ideal for harsh operating sectors, including marine automation, chemical processing plants, and food manufacturing lines.

Tip: Choose rubber-coated magnetic assemblies when mounting fixtures to finished painted surfaces or polished sheet metal to prevent scratching and eliminate lateral slippage.

4. Key Customized Applications Across Industrial Sectors

Customized magnetic assemblies drive efficiency and precision across a diverse spectrum of global manufacturing and construction fields.

• Precast Concrete Construction: Heavy-duty Shuttering Magnets use powerful integrated switchable magnets to lock steel formwork tables instantly, replacing cumbersome bolting and welding with rapid, adjustable positioning.

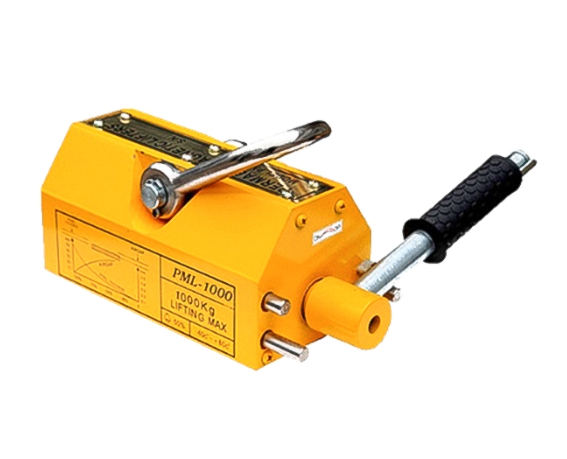

• Material Handling and Lifting: Industrial Lifting Magnets incorporate manual activation levers to engage massive rare-earth magnetic cores, allowing overhead cranes to transport thick steel plates safely without slings or chains.

• Contaminant Separation: Automated production lines utilize Magnetic Separators and filter bars to capture microscopic ferrous wear particles from powders, liquids, and grains, protecting downstream processing equipment and ensuring product purity.

• Precision Machining Workholding: Heavy-duty Magnetic Chucks secure steel workpieces across five sides simultaneously during CNC milling, eliminating mechanical clamps and enabling faster, unhindered tool paths.

Note: Always verify the air gap between the magnetic assembly and the target steel plate, as even a thin layer of paint, rust, or debris can significantly reduce holding pull force.

5. Overcoming Thermal and Environmental Design Challenges

Operating customized magnetic assemblies in high-heat industrial environments or automated stations requires careful engineering to prevent thermal demagnetization and structural fatigue.

Engineers must select appropriate magnet grades—such as high-coercivity Neodymium or high-temperature Samarium-Cobalt alloys—that maintain stable magnetic flux without degrading under continuous radiant heat or heavy electrical loads. Additionally, designing proper air gaps and thermal dissipation channels ensures that assemblies maintain their rated pull force throughout prolonged industrial shifts.

Tip: Consult with magnet engineers to simulate operating temperatures and shear loads during the prototyping phase to prevent unexpected holding force loss on the factory floor.

6. Precision Manufacturing and Quality Assurance

Producing reliable industrial magnetic assemblies requires strict adherence to automated manufacturing protocols and rigorous quality control testing. Automated assembly lines weld, press, and epoxy-seal magnetic components inside steel housings with strict dimensional precision.

Advanced testing equipment—including digital pull-force testers, gaussmeter flux scanners, and salt-spray corrosion chambers—verifies that every custom assembly meets specified holding capacity, structural integrity, and environmental durability standards before leaving the factory floor.

Note: Partnering with experienced manufacturers ensures that custom mounting threads, special housing geometries, and holding force ratings match your exact application requirements.

7. Economic Value and Long-Term Efficiency Strategy

Investing in customized magnetic assemblies delivers substantial long-term financial benefits by streamlining production workflows, reducing equipment setup times, and eliminating maintenance overhead.

Unlike temporary mechanical clamps or drilled bolt connections that require frequent maintenance and damage surrounding materials, magnetic assemblies offer instantaneous clamping, zero-wear operation, and infinite repositionability. Industrial facilities benefit from increased assembly line speed, reduced tooling costs, and maximum operational uptime.

Tip: Evaluate your plant's changeover bottlenecks—replacing manual bolt-down fixtures with quick-release magnetic assemblies often cuts production downtime in half.

Conclusion

Magnetic assemblies serve as essential engineering components that transform raw permanent magnets into robust, highly functional tools for modern industrial automation. By concentrating magnetic flux, protecting brittle materials, and providing versatile mounting interfaces, customized assemblies solve complex holding, lifting, and separation challenges.

Selecting precise magnetic grades, durable protective housings, and optimized circuit geometries ensures long-term operational reliability across demanding manufacturing environments.

To achieve superior performance for your custom industrial applications, explore engineered solutions from Shine. Shine supplies high-performance Magnetic Assemblies, custom pot magnets, magnetic separators, and engineered rare-earth solutions tailored to meet rigorous international industrial standards.

FAQ

Q: What is the main advantage of a magnetic assembly over a bare permanent magnet?

A: Magnetic assemblies enclose magnets inside steel housings to concentrate magnetic flux, boost direct pull force, protect brittle materials from impact, and provide convenient mounting threads.

Q: How does an air gap affect the holding force of a magnetic assembly?

A: An air gap—caused by paint, rust, uneven surfaces, or dirt between the magnet and the steel target—drastically reduces the holding pull force of any magnetic assembly.

Q: Where are rubber-coated magnetic assemblies typically used?

A: They are widely used on painted vehicles, glass surfaces, and polished sheet metal where high friction is needed to prevent sliding without scratching or damaging the contact finish.

Q: Can magnetic assemblies be operated in high-temperature industrial environments?

A: Yes, provided they are engineered with high-temperature magnetic materials like Samarium-Cobalt (SmCo) and specialized housing adhesives designed to withstand elevated heat.
