Choosing the wrong magnetic separator may increase contamination risks.
Which solution fits your production line better, Magnetic Grate or Magnetic Filter Bar?
This guide compares their structures, applications, and performance factors.
You will learn how to select the right magnetic separation solution.

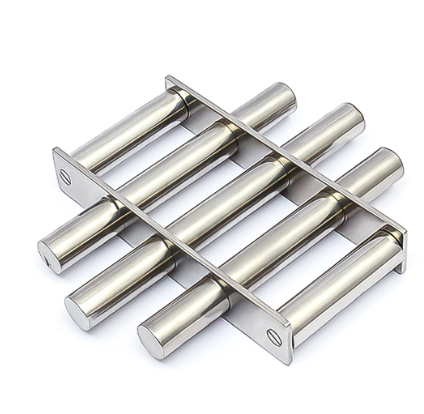

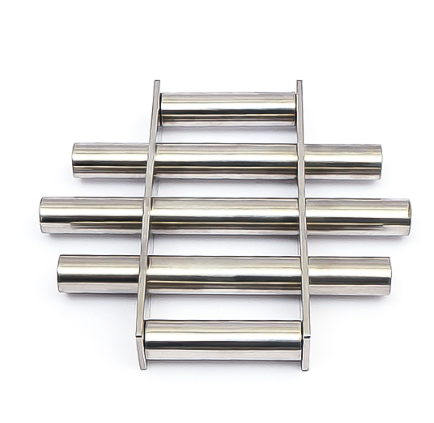

A Magnetic Grate is a magnetic separation device designed to capture iron particles from flowing materials. It usually consists of multiple magnetic tubes arranged in a grid structure.
The magnetic tubes are commonly installed inside stainless steel frames. They create a strong magnetic field across the material flow area.
When materials pass through the grate, ferrous contaminants move toward the magnetic tubes. The system captures metal particles before they enter the next production stage.
Magnetic grates are widely used in industries that handle:
Plastic pellets and powders
Food ingredients
Chemical materials
Ceramic powders
Mineral processing materials
For example, plastic manufacturers often install magnetic grates inside dryer hoppers or feeding systems. It helps remove metal contamination from recycled materials and raw plastic particles.
A well-designed Magnetic Grate provides wide separation coverage. It allows materials to contact multiple magnetic surfaces during movement.
This design improves the chance of capturing small iron particles.
Shine Magnetics provides customized magnetic separation solutions for different industrial applications. Buyers can evaluate suitable magnetic products based on their production requirements.
A Magnetic Filter Bar uses individual magnetic rods to separate ferrous materials from production flows.
Unlike a magnetic grate, filter bars are independent magnetic components. They can be installed in different positions according to equipment design.
Common installation locations include:
Material chutes
Storage bins
Hoppers
Processing equipment
Transfer systems
The working principle is similar. Strong magnetic force attracts iron particles when materials move close to the magnetic surface.
Magnetic Filter Bars are useful when manufacturers need flexible installation options. They can be arranged according to production line structure.
For example, a powder processing factory may install several magnetic bars inside a narrow chute. This setup provides contamination control without changing the complete equipment structure.
Their modular design also makes replacement and maintenance easier.
Although both products use magnetic force for separation, they are designed for different production conditions.
A Magnetic Grate is usually suitable for larger contact areas. It works well when materials flow through hoppers or open feeding sections.
A Magnetic Filter Bar provides more installation flexibility. It fits systems where space is limited or where targeted filtration is required.
Before selecting equipment, buyers should evaluate several factors:
Selection Factor | Magnetic Grate | Magnetic Filter Bar |
|---|---|---|
Installation | Hopper, bins, openings | Flexible locations |
Material contact | Wide coverage | Targeted contact |
Design flexibility | Fixed structure | Modular arrangement |
Maintenance | Regular cleaning required | Easy replacement |
Best use | Bulk material separation | Specific filtration points |
The correct solution should match the actual production process. A stronger magnetic system does not always mean better performance.
The key is achieving efficient separation while maintaining convenient operation.
The biggest difference between Magnetic Grate and Magnetic Filter Bar is their physical structure.
A Magnetic Grate combines multiple magnetic tubes into one complete frame. The grid design creates a large magnetic separation area.
A Magnetic Filter Bar uses individual magnetic rods. These rods can be placed separately inside equipment.
The structural differences affect installation methods.
Magnetic Grates are commonly installed at:
Hopper entrances
Material loading points
Powder feeding systems
Magnetic Filter Bars are often installed in:
Narrow passages
Existing production equipment
Custom filtration systems
For production lines handling large material volumes, a grate structure can provide wider coverage.
For customized equipment layouts, filter bars may offer easier integration.
Magnetic separation performance depends on more than magnetic strength. The equipment structure also affects how materials contact the magnetic surface.
A Magnetic Grate creates multiple magnetic collection points. Materials must pass between magnetic tubes, increasing contact opportunities.
This makes it suitable for removing:
Iron powder
Metal fragments
Fine ferrous particles
A Magnetic Filter Bar focuses separation around each magnetic rod. Performance depends on:
Rod arrangement
Material flow speed
Distance between bars
Particle size
For fine powder materials, proper spacing is important. If materials move too quickly, some particles may not contact the magnetic field effectively.
Therefore, production conditions should always be considered before selecting magnetic separation equipment.
Maintenance is another important difference between these two solutions.
Magnetic Grates normally require regular cleaning because captured metal particles accumulate around multiple magnetic tubes.
Cleaning frequency depends on:
Material contamination level
Production volume
Operating environment
Magnetic Filter Bars may provide easier access in some applications. Individual bars can be removed, cleaned, or replaced separately.
However, the best maintenance method depends on installation design.
A production line running continuously should consider cleaning time carefully. Frequent production stops may affect overall efficiency.
Tip： Buyers should evaluate cleaning procedures before purchasing magnetic separation equipment because maintenance convenience directly affects long-term operating costs.
A Magnetic Grate is suitable for production lines where materials move through a wide feeding area. Its multi-tube structure provides broader magnetic coverage.
Many industries use Magnetic Grate systems because raw materials often contain unwanted metal particles during transportation or processing.
Typical applications include:
Plastic pellet processing
Food ingredient handling
Powder production
Chemical material processing
Ceramic manufacturing
In plastic processing, raw materials may collect metal particles during transportation. These contaminants can enter extruders or molding equipment.
Installing a Magnetic Grate before processing helps reduce this risk.
For powder materials, the grid structure allows materials to pass around multiple magnetic tubes. This improves contact opportunities and supports more effective iron removal.
The performance of a Magnetic Grate depends on correct installation. The equipment should match the material flow direction and production capacity.
A properly designed system can provide stable separation without affecting normal material movement.
Many manufacturers install Magnetic Grates inside hoppers because they provide continuous protection before materials enter production equipment.
The main benefits include:
Removing ferrous contaminants before processing
Protecting downstream machines
Improving final product consistency
Reducing equipment damage risks
For example, plastic dryers and loaders often handle large amounts of raw materials. Small metal particles may damage screws, barrels, or other components.
A Magnetic Grate works as a protection barrier. It captures magnetic impurities before they reach sensitive equipment.
In food production, magnetic grates also support cleaner material handling. Stainless steel construction helps meet demanding production environments.
The design can be customized according to:
Hopper dimensions
Material volume
Required magnetic strength
Cleaning method
Shine Magnetics develops customized magnetic separation products for different industrial conditions. The right structure helps manufacturers improve contamination control.
Although Magnetic Grate is widely used, buyers should confirm several technical details before ordering.
Important factors include:
Factor | Why It Matters |
|---|---|
Hopper size | Determines suitable grate dimensions |
Material flow speed | Affects separation efficiency |
Magnetic strength | Influences metal capture ability |
Cleaning access | Affects maintenance efficiency |
Operating environment | Determines material requirements |
A larger grate does not always provide better results. The magnetic field distribution and installation position are equally important.
Buyers should also consider whether the material flows evenly through the grate.
Uneven flow may reduce contact between materials and magnetic tubes.
For high-volume production, suppliers may recommend customized structures. These solutions can improve separation performance while maintaining smooth material movement.
Tip： Magnetic Grate performance depends on actual operating conditions, not only the listed magnetic strength.
A Magnetic Filter Bar is a practical choice when production equipment requires flexible installation.
Unlike a complete magnetic grate frame, individual magnetic bars can be arranged according to available space.
This makes them suitable for:
Existing equipment upgrades
Compact production systems
Custom filtration points
Narrow material channels
Many manufacturers cannot redesign their complete production lines. A flexible magnetic bar solution allows them to add contamination control without major equipment changes.
For example, a chemical processing system may have limited installation space inside a pipeline or chute. Several magnetic filter bars can be positioned to create an effective separation area.
This modular design provides more options for different production layouts.
Magnetic Filter Bars offer several advantages in industrial applications.
Their main benefits include:
Flexible installation
Simple replacement
Easy system adjustment
Suitable for customized equipment
They are commonly used in industries requiring targeted filtration.
Examples include:
Chemical powder production
Plastic material processing
Industrial material transfer
Laboratory material handling
Because each bar works independently, manufacturers can adjust the arrangement based on material characteristics.
For example, a production line handling fine powder may require closer spacing between bars.
A line handling larger particles may use a different configuration.
The correct arrangement helps increase magnetic contact time and improves contamination removal.
The performance of a Magnetic Filter Bar depends on several application factors.
Important considerations include:
Magnetic strength
Higher magnetic force can improve the capture of ferrous particles. However, the required strength depends on contamination size and material conditions.
Bar arrangement
The distance between magnetic bars affects material contact. Proper spacing improves separation efficiency.
Material flow speed
Fast-moving materials may reduce contact time. A suitable installation design helps maintain effective separation.
Particle characteristics
Small iron particles require stronger magnetic fields and better positioning.
Before ordering, buyers should provide information about:
Material type
Particle size
Flow speed
Installation space
This allows suppliers to recommend suitable magnetic solutions.
Material properties are one of the most important factors when choosing magnetic separation equipment.
Different materials create different separation challenges.
Buyers should evaluate:
Material Factor | Selection Impact |
|---|---|
Powder or pellets | Determines contact design |
Material density | Affects flow behavior |
Moisture level | Influences cleaning needs |
Particle size | Affects magnetic capture |
For dry powders, a Magnetic Grate may provide better coverage because materials pass through multiple magnetic tubes.
For special equipment layouts, Magnetic Filter Bars may provide better flexibility.
The material flow pattern should always be considered first.
Every production line has different installation conditions.
Before selecting equipment, buyers should check:
Available installation space
Material entry position
Equipment structure
Maintenance accessibility
A Magnetic Grate usually requires a suitable opening area.
A Magnetic Filter Bar can be installed in smaller spaces.
For existing production lines, filter bars may reduce modification requirements.
For new systems, magnetic grates can be integrated into the original design.
The goal is to create a reliable separation point without interrupting production efficiency.
Cost is an important factor, but buyers should not select equipment only by initial price.
A lower-cost product may require more frequent cleaning or replacement.
A suitable magnetic system should balance:
Purchase cost
Maintenance requirements
Production protection
Long-term value
For example, a food processing factory may need higher-grade stainless steel construction because cleaning frequency is high.
A plastic processing factory may focus more on protecting machines from metal damage.
The best solution depends on the total operating environment.
Tip： A professional supplier can help compare equipment cost, maintenance needs, and expected production benefits before purchase.
Magnetic strength is one of the most important specifications when selecting magnetic separation equipment.
However, stronger magnetic force does not always mean better results.
The required magnetic strength depends on:
Material type
Contamination size
Flow speed
Separation target
Production environment
For example, fine iron powder requires stronger magnetic attraction than larger metal particles.
Buyers should confirm the required magnetic performance before ordering.
Important specifications include:
Specification | Description |
|---|---|
Magnetic strength | Determines attraction ability |
Surface gauss value | Measures magnetic field intensity |
Tube diameter | Affects magnetic coverage |
Number of magnetic bars | Influences separation area |
Installation position | Affects contact efficiency |
A supplier needs these details to recommend a suitable Magnetic Grate or Magnetic Filter Bar.
Without clear requirements, the selected equipment may not achieve expected separation results.
The construction material directly affects equipment durability and application performance.
Most industrial magnetic separation products use stainless steel housings because they provide:
Corrosion resistance
Easy cleaning
Long service life
Stable mechanical performance
Different industries may have different material requirements.
For example:
Food production may require food-grade stainless steel.
Chemical applications may need stronger corrosion resistance.
Outdoor environments may require additional protection.
Buyers should also confirm structural details, including:
Product dimensions
Frame design
Connection method
Surface finish
Custom requirements
A suitable structure improves installation efficiency and reduces future maintenance problems.
Shine Magnetics provides customized magnetic solutions based on different production conditions. Buyers can discuss product requirements before selecting the final design.
Choosing the right supplier is as important as choosing the right magnetic equipment.
A professional supplier should understand both magnetic technology and production applications.
Buyers should review:
Manufacturing experience
Custom design ability
Quality inspection process
Technical support capability
A supplier with customization experience can adjust product designs according to actual production needs.
For example, a manufacturer may need:
Special grate dimensions
Different magnetic tube arrangements
Customized installation structures
Specific magnetic strength requirements
Technical communication is important during this process.
A reliable supplier should help customers understand product options and recommend suitable solutions.
Metal contamination can affect product quality and production safety.
Even small iron particles may create problems in many industries.
Possible risks include:
Product defects
Equipment damage
Production interruptions
Customer complaints
Magnetic Grate and Magnetic Filter Bar systems help reduce these risks by capturing ferrous materials before they enter critical processes.
In plastic processing, magnetic separation helps protect:
Extrusion equipment
Injection molding machines
Material handling systems
In food processing, it supports cleaner raw material handling.
In chemical production, it helps maintain material purity.
The separation process works continuously during material movement.
This reduces the need for manual inspection and improves production reliability.
Stable production requires consistent material quality.
When metal contaminants enter manufacturing systems, they may cause unexpected problems.
A suitable magnetic separation system helps manufacturers maintain smoother operations.
Benefits include:
Fewer contamination issues
Reduced machine wear
More stable product quality
Lower unexpected downtime
For example, a plastic factory using contaminated raw materials may experience damaged machine components.
Installing magnetic separation equipment before processing helps reduce these risks.
The correct choice between Magnetic Grate and Magnetic Filter Bar depends on the production process.
A good system should match material flow and maintenance requirements.
Magnetic separation technology is widely used across many industries.
Common applications include:
Food Processing
Magnetic equipment helps remove metal contamination from ingredients and powders.
Plastic Manufacturing
It protects processing equipment from iron particles found in recycled or transported materials.
Chemical Production
It improves material purity during powder and chemical handling.
Pharmaceutical Manufacturing
It supports cleaner production environments.
Powder Manufacturing
It helps remove unwanted metal particles from fine materials.
Each industry has different requirements.
Therefore, equipment selection should consider:
Material properties
Production capacity
Cleaning procedures
Required magnetic performance
A customized solution usually provides better results than a standard product.
Different production lines require different magnetic separation designs.
A professional supplier can provide customized solutions based on actual requirements.
Customization options may include:
Different product sizes
Various magnetic strengths
Special installation structures
Customized tube arrangements
For example, a large powder production line may require a wide Magnetic Grate structure.
A compact processing system may need flexible Magnetic Filter Bars.
The design should match the equipment layout and material characteristics.
Customized solutions help improve separation efficiency and reduce unnecessary modifications.
Product quality directly affects long-term performance.
Professional magnetic separation manufacturers focus on:
Material selection
Manufacturing accuracy
Magnetic performance testing
Surface quality inspection
Before delivery, products should be checked for:
Structural strength
Magnetic consistency
Dimensional accuracy
Surface condition
Reliable quality control helps ensure stable performance during continuous operation.
For industrial users, consistent product quality is essential.
It reduces replacement frequency and improves production confidence.
Selecting magnetic equipment is not only a product purchase.
It is also a technical decision.
Experienced suppliers can support customers by:
Evaluating production conditions
Recommending suitable products
Optimizing installation methods
Improving separation performance
Technical support is especially valuable for customized production systems.
A supplier should understand how equipment works in real applications.
This helps buyers avoid incorrect selection and improve investment value.
Tip： The ideal magnetic separation solution should be selected according to application conditions rather than product specifications alone.
Choosing between Magnetic Grate and Magnetic Filter Bar depends on material flow, installation needs, and separation goals. Shine Magnetics provides customized magnetic separation solutions that help industries improve contamination control, protect equipment, and maintain stable production performance.
A: Magnetic Grate provides wider coverage, while Magnetic Filter Bar offers flexible installation for targeted filtration.
A: Magnetic Grate is suitable for powder and granular materials requiring large separation areas.
A: A Magnetic Filter Bar captures ferrous particles as materials pass through magnetic fields.
A: Consider material type, flow speed, installation space, and cleaning requirements before selection.
A: Cost depends on magnetic strength, structure, size, materials, and customization needs.
