Why Ferrite Magnets Remain Popular in Cost Sensitive Industrial Applications

Modern engineering often focuses heavily on high-energy rare-earth elements. However, traditional permanent magnetic materials continue to drive high-volume manufacturing sectors worldwide. Specifically, Industrial Permanent Ferrite Ceramic Magnets remain a cornerstone across automotive, home appliance, and industrial automation fields. While rare-earth alloys provide unmatched magnetic flux density, ferrite ceramic materials offer an unbeatable combination of raw affordability, exceptional corrosion resistance, and robust thermal stability

Understanding why industrial engineers repeatedly select ceramic magnets for high-volume production lines helps product development teams balance strict budget targets against required electromagnetic performance.

1. The Core Economics of Ferrite Ceramic Magnet Manufacturing

The primary driver behind the enduring popularity of ceramic magnets lies in their raw material economy. Neodymium and samarium-cobalt magnets rely heavily on expensive rare-earth elements subject to volatile global commodity pricing and geopolitical supply chain fluctuations. Conversely, ferrite magnets are produced from abundant iron oxide ($Fe_2O_3$) and inexpensive barium carbonate or strontium carbonate.

Because these precursor raw materials are cheap and widely accessible, component production costs remain remarkably stable. For high-volume manufacturing sectors producing millions of units annually, switching to rare-earth alternatives would introduce prohibitive financial overhead without delivering proportional operational benefits.

Tip: Choose ceramic magnets for high-volume consumer goods where raw material cost control directly dictates final retail profitability.

2. Inherent Corrosion Resistance and Environmental Stability

Another major engineering advantage of ferrite ceramic materials is their exceptional chemical stability. Sintered ferrite is a ceramic oxide, meaning its chemical structure is already fully oxidized. Unlike rare-earth alloys containing 65% to 70% active iron that oxidize rapidly in humid environments, ceramic magnets are naturally immune to rust and moisture degradation.

This chemical inertness eliminates the need for expensive electroplated protective coatings such as nickel-copper-nickel or epoxy barriers. In harsh industrial environments—such as water pump impellers, outdoor security sensors, or heavy-duty magnetic separators—ceramic components maintain long-term structural and magnetic integrity without surface breakdown or flaking.

Note: Eliminating protective coating steps during manufacturing simplifies supply chains and removes a common failure point in corrosive operating environments.

3. High Thermal Stability and Resistance to Demagnetization

Thermal endurance is a critical design factor for industrial equipment operating under continuous heavy loads. While standard neodymium magnets suffer permanent flux loss at temperatures exceeding 80°C unless upgraded to expensive high-temperature grades, ferrite magnets exhibit remarkable thermal resilience.

Ceramic magnets maintain stable magnetic output at operating temperatures up to 250°C without experiencing irreversible demagnetization. Furthermore, ferrite materials possess a high intrinsic coercivity at elevated temperatures, meaning their resistance to external demagnetizing fields actually improves as working heat increases. This unique thermal characteristic makes them ideal for automotive under-hood actuators, heating ventilation systems, and electric motor stators.

Tip: Specify ceramic magnets for high-heat industrial applications where cooling systems are limited and components must endure continuous thermal stress.

4. Key Industrial Applications Driven by Ferrite Magnets

Mass-market engineering sectors rely heavily on ceramic magnets because their physical properties match the exact performance thresholds required for daily operations. Small domestic appliances—including washing machine water pumps, refrigerator door seals, blender motors, and electric fans—utilize millions of anisotropic ferrite segments annually.

Additionally, industrial sorting systems and magnetic filtration units use durable ceramic blocks to capture ferrous debris from high-speed production lines without requiring frequent part replacements. In automotive starter motors and blower assemblies, heavy-duty ferrite arcs deliver reliable torque output while keeping vehicle manufacturing budgets tightly controlled.

Note: Proper grade selection (such as C8 or Y30BH anisotropic blocks) ensures optimal magnetic flux output for specific motor air-gap designs.

5. Mechanical Hardness and Resistance to Demagnetization

Because ferrite magnets are manufactured through ceramic powder pressing and high-temperature sintering, the resulting material is exceptionally hard and mechanically rigid. While this hardness makes the material brittle and sensitive to sharp mechanical impacts if unsupported, it also provides excellent resistance against physical deformation under heavy industrial loads.

Additionally, ferrite materials possess a high electrical resistivity, which significantly minimizes eddy current losses when exposed to alternating magnetic fields inside high-speed motor armatures. This electrical property reduces internal thermal heating during continuous operation, protecting winding insulation and extending overall motor life.

Tip: Design structural housing enclosures with protective cushion ribs to prevent chipping or cracking during high-speed automated assembly processes.

6. Manufacturing Scalability and Precision Tooling

Producing ferrite magnets involves mature, highly automated pressing and sintering techniques. Raw iron oxide powders are mixed with binding agents, compressed inside precision magnetic alignment dies to induce anisotropy, and sintered in high-temperature tunnel kilns.

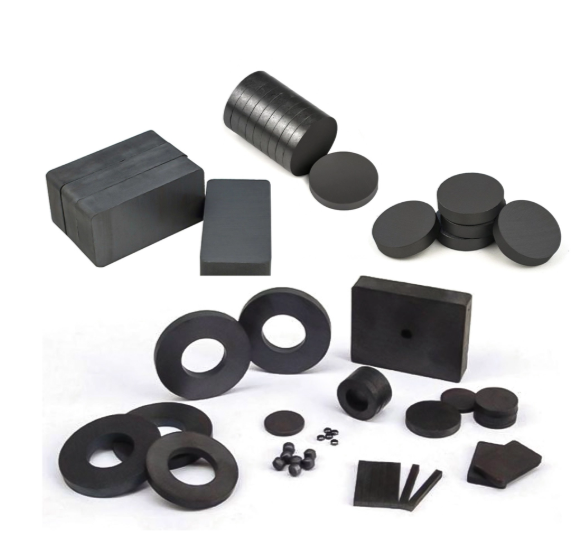

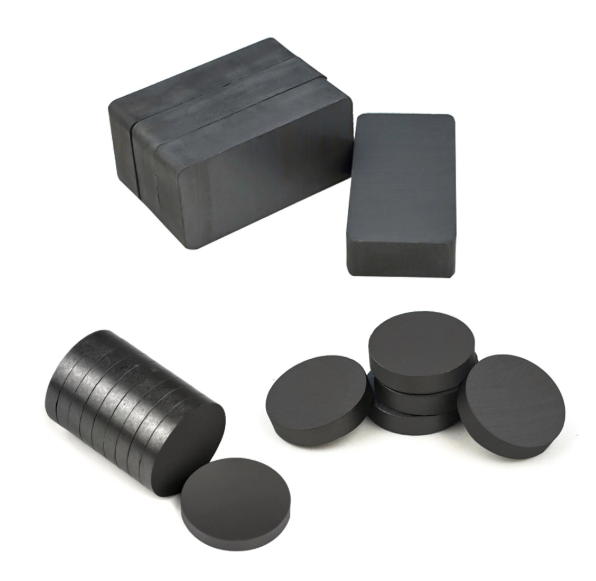

This scalable manufacturing process allows suppliers to produce complex geometric shapes—such as arc segments, rectangular blocks, rings, and discs—in large batch quantities with consistent dimensional tolerances. For procurement managers and project engineers, this manufacturing maturity guarantees short lead times, reliable supply chain continuity, and highly competitive unit pricing.

Note: Partnering with experienced manufacturers ensures that custom tooling and magnetic orientation angles meet exact design specifications without inflating production budgets.

7. Balancing Cost and Performance in Modern Product Design

When evaluating total project expenditure, engineers must weigh upfront material expenses against long-term maintenance and operational reliability. While rare-earth magnets remain necessary for ultra-compact, high-torque applications, forcing high-end materials into cost-sensitive consumer products compresses profit margins unnecessarily.

By utilizing high-performance ceramic grades, design teams achieve reliable electromagnetic output while keeping bill-of-materials (BOM) costs strictly controlled. This strategic balance allows manufacturing companies to remain competitive in global markets while delivering durable, dependable machinery to end users.

Tip: Conduct a thorough cost-benefit analysis during the prototype phase to determine whether ceramic magnetic solutions satisfy your performance targets at a fraction of rare-earth material costs.

Conclusion

Ferrite magnets remain immensely popular in cost-sensitive industrial applications because they deliver an exceptional balance of raw material affordability, natural corrosion resistance, and high-temperature stability. While advanced technologies require specialized rare-earth alloys, traditional ceramic materials continue to power high-volume manufacturing sectors efficiently.

Selecting proven, high-quality components ensures long-term operational reliability while protecting profit margins across competitive global markets.

To optimize your production lines and procurement budgets, explore engineered magnetic solutions from Shine. Shine supplies high-performance Industrial Permanent Ferrite Ceramic Magnets, custom magnetic assemblies, and reliable rare-earth alternatives tailored to meet rigorous international industrial standards.

FAQ

Q: Why are ferrite magnets more cost-effective than neodymium magnets?

A: Ferrite magnets are manufactured from abundant iron oxide and carbonate raw materials, avoiding the expensive, volatile rare-earth elements required for neodymium production.

Q: Do ferrite ceramic magnets rust or corrode in moist environments?

A: No, ferrite magnets possess a stable ceramic oxide structure that is naturally immune to oxidation and rust, eliminating the need for protective electroplated coatings.

Q: What is the maximum operating temperature for industrial ferrite magnets?

A: Standard industrial ferrite magnets maintain stable magnetic output at continuous working temperatures up to 250°C to 300°C without experiencing permanent demagnetization.

Q: In which industrial applications are ceramic magnets most commonly utilized?

A: They are widely used in home appliance water pumps, automotive blower motors, loudspeakers, magnetic separation equipment, and industrial DC motors.
