In the world of precast concrete production, every second and every inch matter. Whether you're manufacturing wall panels, beams, stair treads, or architectural elements, the efficiency, precision, and sustainability of your mold setup can significantly impact overall productivity and quality. Enter the often-overlooked hero of mold precision: the shuttering magnet, also known in industry terms as a Precast Concrete Component Magnetic Box.
Traditionally, securing formwork in precast production involves welding clips, bolting plates, or clamping fixtures to steel casting tables. While effective, these methods come with drawbacks:
Time consuming installation
Wear and damage to steel tables
Inflexibility when adjusting or replacing molds
Safety risks from sparks, tools, debris, and slag
The result: longer production cycles, higher maintenance needs, and reduced operational flexibility.

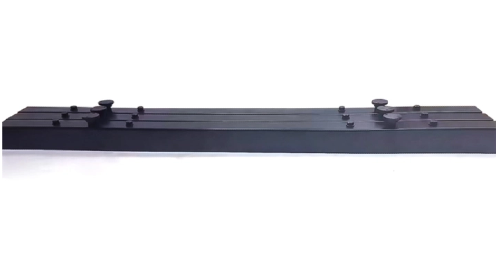

Shuttering magnets, or precast concrete component magnetic boxes, are compact magnetic clamping devices designed to grip steel tables without invasive installation. Each unit typically includes:
A high-strength neodymium magnetic core
A sealed steel housing to protect against concrete and debris
A switchable mechanism—push-button or lever—for activating/deactivating magnetic hold
A threaded mounting system for connecting to a variety of shuttering panels
With pull forces ranging from 500 kg to over 2,000 kg, these magnets can securely hold heavy mold segments during casting—while enabling fast removal after curing.
With shuttering magnets, operators can position and lock molds in seconds—no welding, bolting, or aligning required. Need to replace a damaged panel or adjust panel spacing? Simply slide out the old panel and magnetically lock in the new one.
Since the mold surfaces are clamped by magnetism and not influenced by variable force from welding or clamping, you achieve consistent panel alignment and repeatable results—critical for tight tolerances.
Traditional welding scratches and warps steel tables over time. Magnetic systems protect surfaces, reducing grit accumulation and preserving flatness—leading to better concrete seams and reduced resurfacing costs.
Without welding torches or manual tools, mold handling becomes safer—eliminating sparks, hot slag, and handling risks. That translates to fewer accidents and downtime.
Shuttering magnets improve safety in multiple ways:
Fewer hot work hazards — no sparks or welding
Lighter handling — replace heavy clamps with magnetic boxes weighing just a few kilograms
Simpler release mechanisms — less physical strain when demolding
Cleaner work environment — no welding debris or grinding dust
All of this helps improve workplace ergonomics, reducing fatigue and injuries.
Switching to shuttering magnets can save money across key areas:
Area Impacted | Savings Type |
Labor costs | Reduce setup time by 30–50% |
Table maintenance | Fewer welds → less grinding/resurfacing |
Shorter lead times | Faster mold turnaround |
Fewer off cuts & rework | Consistent panel alignment minimizes defects |
Collectively, these efficiencies add up in faster production cycles and better product quality.
If you're ready to integrate shuttering magnets, start with these steps:
Evaluate your mold types – Determine the number and pull-strength needed for each panel.
Map magnetic adaptive points – Design magnet placement for even load distribution.
Train your team – Teach safe installation/removal techniques and perform magnetic field checks to avoid accidental pinching.
Maintain the system regularly – Clean housings, inspect for corrosion, and verify magnet strength every few months.
Track ROI through KPIs – Monitor setup time, cast cycle duration, mold-table wear, and defect rates.
Job: Cast hundreds of identical panels daily.
Benefit: Shuttering magnets help reconfigure molds in minutes—cutting changeover downtime by half.
Job: Produce various mold shapes and sizes.
Benefit: Magnetic flexibility enables easy mold swapping without complex fixtures.
Job: Construct panels near build sites (e.g. modular housing).
Benefit: No welding, no heavy tools—ideal for portable production setups.
Today’s shuttering magnets can be tailored to your production requirements:
Low-profile variants for narrow molds
High-temperature grade cores for hot-cast mixes
Custom-machined housings, including built-in lifting handles
Mechanical or foot-activated release levers
Incorporated proximity sensors to signal when activated
These specialized features further increase safety, ease of use, and process automation.
Shuttering magnets are not just a technical advancement—they’re a key driver of sustainable innovation in precast concrete manufacturing. By eliminating the need for traditional welding and reducing steel surface wear, these systems drastically cut down on both material waste and environmental emissions. The reusable nature of magnetic boxes also means fewer consumables and less scrap over time.
Case studies have demonstrated the following benefits:
Over 30% reduction in steel grinding and maintenance operations, leading to less downtime and longer formwork lifespan.
Up to 25% energy savings per casting cycle by optimizing setup and demolding processes.
Zero welding fumes and reduced grinding dust, which significantly improves air quality on the production floor and enhances worker health and safety.
For companies focused on ESG performance and compliance with green building standards (like LEED or BREEAM), integrating shuttering magnet systems represents a tangible and measurable step toward cleaner, leaner, and greener operations.
Q: Do magnets lose strength over time?
A: Good-quality neodymium magnets maintain over 90% of magnetic pull over 20 years—minimal degradation under normal use.
Q: Do they hold up against pouring pressure?
A: Yes—when sized and distributed properly, they can resist both vertical pressure and horizontal shear.
Q: What about formwork vibrations?
A: When installed correctly, shuttering magnets resist vibration, though proper placement and occasional re-tightening are advised.
Q: Are they safe around electronics?
A: Basic magnets have negligible fields beyond their casings. Avoid prolonged device contact directly on them, though standard operation is typically unaffected.
If you’re ready to boost productivity and mold accuracy, consider these next steps:
Consult with a magnetic tooling partner for layout planning and CAD prototypes
Request pullstrength spec sheets and recommended magnet layouts
Run a side by side trial comparing magnetic vs traditional mold setups
Quantify cycle time savings and maintenance reduction
Integrate optional automation, such as sensor triggers for mold positioning
Small changes can deliver measurable improvements in reliability, throughput, and quality metrics.
Shuttering magnets—aka Precast Concrete Component Magnetic Boxes—offer a powerful combination of speed, accuracy, safety, and long-term value. By shifting away from welding and clamping, facilities can streamline mold workflows, enhance precision, and build a more sustainable production process.
For precast manufacturers focused on modernization and lean operations, this isn’t just a tool—it’s a strategic asset.
If you're exploring high-performance shuttering magnets with reliable design and engineering support, consider Ningbo Shine Magnetic Technology Co., Ltd. Their team specializes in magnetic mold solutions, supporting customizable configurations to meet unique factory workflows. From component specs to layout planning, they offer expert guidance without overwhelming sales pitches.
Visit Ningbo Shine Magnetic Technology Co., Ltd. or reach out for a no-pressure consultation and see
