Formwork shifting poses a critical failure point in precast concrete production. These unexpected shifts lead directly to severe dimensional inaccuracies, massive material waste, and serious factory safety hazards. Plant managers know this frustration well. High-quality Shuttering Magnets provide immense holding power. However, their effectiveness depends heavily on precise spatial positioning, clean surface conditions, and accurate load calculations. A simple misalignment can compromise an entire casting process.
This article provides a rigorous, engineering-backed framework for calculating optimal magnet spacing. We explore proven techniques to help you avoid common installation failures on the factory floor. You will learn how to select the right magnet specifications tailored to your specific production demands. By following these guidelines, you can guarantee zero formwork movement even during intense, high-vibration concrete pours.
Positioning Ratio: Standard spacing for shuttering magnets typically ranges from 1 to 1.5 meters, strictly dictated by formwork height and concrete vibration intensity.
Force vs. Load: Claimed magnetic holding force (e.g., 900kg, 2100kg) must be discounted by 20-30% in real-world scenarios to account for steel bed degradation and concrete slag.
Critical Zones: Corners, joints, and high-pressure bottom edges require reinforced positioning strategies to counteract hydrostatic pressure.
Procurement Logic: Evaluating a building shuttering magnet goes beyond raw magnetic strength; longevity relies on internal spring mechanisms, casing durability, and ease of maintenance.
Formwork blowouts represent a significant financial drain on precast concrete facilities. When a profile shifts just a few millimeters, the entire precast element often faces rejection. Rework consumes expensive labor hours. Wasted concrete directly inflates production costs. You must understand the physical forces at play to prevent these costly micro-shifts.
Wet concrete behaves exactly like a dense fluid. As you pour it into the mold, it exerts severe outward hydrostatic pressure against the side rails. This outward pressure peaks sharply during the mechanical vibration phase. Vibrators liquefy the concrete mix to remove air bubbles. This liquefaction temporarily eliminates internal friction within the mix. Consequently, the fluid concrete pushes outward against the formwork at maximum force.
Many operators misunderstand the relationship between magnetic pull force and sliding resistance. This misunderstanding creates a dangerous adhesion gap. A magnet rated for 900kg of vertical pull force does not offer 900kg of shear resistance. Shear resistance prevents horizontal sliding. The actual sliding resistance usually measures only 20% to 30% of the vertical pull force. Proper positioning strategies mathematically compensate for this severe disparity.
Table 1: Pull Force vs. Real-World Shear Resistance
Rated Vertical Pull Force | Estimated Shear Resistance (Clean Steel Bed) | Estimated Shear Resistance (Worn/Oiled Bed) |
|---|---|---|
600kg | 180kg | 120kg |
900kg | 270kg | 180kg |
1350kg | 405kg | 270kg |
2100kg | 630kg | 420kg |
Establishing strict spacing guidelines forms the foundation of formwork stability. Your baseline framework must account for element height, thickness, and concrete density. Haphazard placement inevitably leads to weak points along the profile.
Standard height elements up to 400mm require a specific, consistent approach. You should instruct your team to position a magnet every 1,000mm to 1,500mm along the linear wall. This spacing distributes the hydrostatic pressure evenly across the steel rail. Always measure from the center point of one magnet to the next. Do not leave gaps larger than 1,500mm under any circumstances.
Elements exceeding 400mm in thickness generate massive outward loads. Standard spacing will fail here. You must reduce the distance between magnets to 500mm or 750mm. Alternatively, you can utilize higher-capacity models designed for heavy-duty applications. Doubling the frequency of placement creates a rigid, unyielding barrier against the high-pressure concrete fluid.
Best Practice for Corners: Corners and joints act as high-stress vulnerability zones. Concrete naturally forces its way into these intersections. You must place magnets precisely 150mm to 200mm away from any formwork corner. This targeted reinforcement prevents edge-bleeding and catastrophic corner blowouts.
Adhering to a strict mechanical workflow ensures maximum magnetic contact. Operators should memorize this engagement sequence:
Clean the target area: Sweep the steel casting bed to remove all concrete debris.
Position the profile: Set the side rail exactly on the chalk line.
Place the device: Lower the magnet gently into position behind the rail.

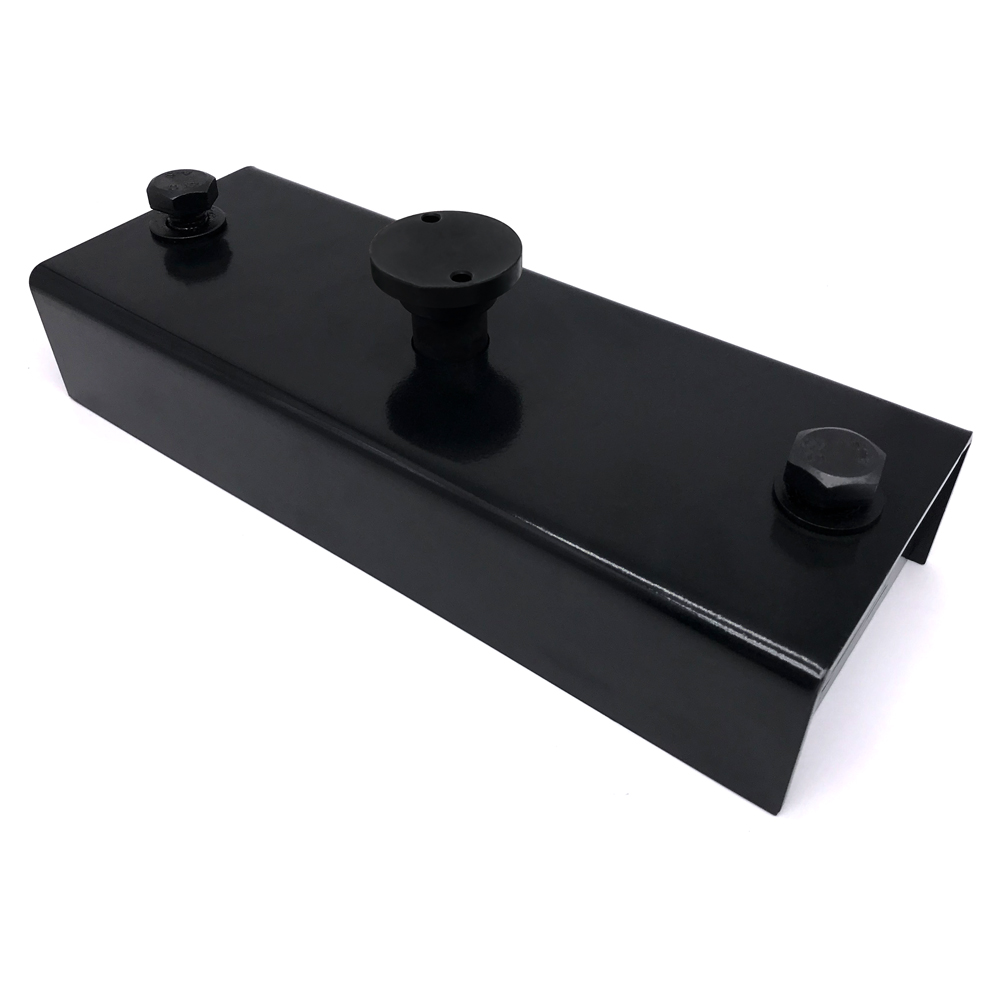

Activate the mechanism: Press the push-button firmly to engage the magnetic block against the table.
Verify contact: Inspect the base to ensure zero gaps exist between the magnet and the steel bed.
Selecting the correct magnet requires precise calculations. You cannot simply guess the required strength. First, evaluate the concrete density of your specific mix. Next, calculate the intended pour rate. Faster pouring generates higher immediate pressure. Finally, assess the casting bed friction coefficients. A smooth, heavily oiled bed provides much less friction than a raw steel surface.
Industry standards divide these tools into distinct capacity tiers based on their vertical pull force. You should categorize your inventory to match specific plant applications:
Light-duty (450kg - 600kg): These units handle low-stress tasks perfectly. They prove ideal for securing chamfers, window block-outs, door frames, and thin decorative panels.
Medium to Heavy-duty (900kg - 1350kg): These represent the standard application tier. You will use them primarily for typical wall panels and standard structural elements.
Extreme-duty (1800kg - 2100kg+): You need these massive units for large infrastructural elements. They also secure formwork during exceptionally high vibration scenarios, such as bridge girder production.
We strongly advise buyers to demand independent pull-test certifications from their suppliers. Many manufacturers overstate shear force capabilities to secure quick sales. They often advertise maximum vertical pull without conducting real-world shear tests. Always require documented evidence of testing before authorizing bulk purchases.
Even the strongest magnets fail if operators ignore basic installation protocols. The most prevalent risk involves surface contamination. Concrete slag, rust flakes, or excess release oil frequently coat the casting bed. Just 1mm of debris trapped under the magnet drastically reduces its holding power. This phenomenon, known as the air-gap effect, breaks the magnetic circuit. The magnetic field cannot penetrate the debris, rendering the tool useless against lateral pressure.
Bed thickness incompatibility represents another hidden danger. Powerful magnets require sufficient steel mass to reach full magnetic circuit saturation. If you use a 2100kg magnet on a thin steel table under 10mm thick, the magnetic field passes straight through the table. The magnet cannot grip the thin metal securely. This lack of saturation leads directly to unexpected formwork shifting.
Mechanical degradation slowly destroys reliability over time. Factory workers frequently use steel hammers to strike the activation button. This violent impact damages the fragile neodymium core hidden inside. It also warps the internal spring mechanisms. You must train operators to use proper lever tools for engagement and disengagement. Hammering gradually turns a powerful device into a weak, unreliable liability.
When you need to procure a Building Shuttering Magnet, you must connect product design features directly to plant efficiency. Look beyond the basic pull-force rating. Casing material plays a massive role in operational longevity. Carbon steel casings require anti-corrosion treatments to survive caustic concrete environments. Stainless steel casings offer superior rust resistance, saving countless hours of maintenance labor.
Neodymium protection stands as a critical evaluation metric. NdFeB magnetic material is notoriously brittle. It shatters easily under sudden impacts. You must select products featuring sealed or resin-filled magnetic blocks. The resin acts as a shock absorber. It protects the fragile core from the inevitable bumps and drops occurring on a busy factory floor.
Common Mistake: Buyers often prioritize the lowest unit price during procurement. This approach ignores long-term usability. You should shift your evaluation criteria toward ease of cleaning and operational flexibility. Check the availability of standardized adapters and clamps. A versatile unit easily integrates into your existing formwork systems, saving you from purchasing expensive custom brackets down the line.
Preventing formwork movement requires strict discipline across your entire production line. You must synthesize correct force calculations with rigorous spatial positioning. Routine surface maintenance guarantees the magnets can perform at their rated capacities. Treat these tools as precision instruments rather than simple weights.
We encourage plant managers to audit their current scrap rates caused by formwork shifts. Analyze your spacing protocols and check for operator errors during installation. Request a sample unit for a live-pour trial to validate claimed holding forces in your specific environment. Taking these proactive steps ensures absolute dimensional accuracy and protects your bottom line.
A: Yes, release oil significantly reduces the friction between the magnet and the steel bed. While the vertical magnetic pull remains unaffected, the shear resistance drops drastically. To mitigate this, apply oil sparingly and wipe down the specific placement spots before positioning the magnets to restore necessary friction.
A: You will notice verifiable indicators on the factory floor. Magnets sliding during standard pours strongly indicate force loss. Visible casing damage or a jammed push-button mechanism often points to internal shattered magnets. For precise measurement, use a dedicated pull-force testing rig annually.
A: Not necessarily. While a stronger magnet offers higher shear resistance, you still need to distribute pressure evenly. Placing fewer strong magnets too far apart causes the steel formwork profile to bow outward between the connection points. You must balance raw strength with proper linear spacing.
