Concrete leakage at formwork joints remains a persistent challenge in modern precast production facilities. It frequently leads to dimensional inaccuracies, surface honeycombing, and highly expensive post-pour patching operations. Traditional formwork fastening methods often degrade over time. Welding, bolting, and manual clamping create hidden micro-gaps along the casting bed. These microscopic gaps widen rapidly under the intense stress of heavy mechanical vibration. Hydrostatic pressure from wet concrete pushes through these weakened seams easily.
Integrating a high-quality magnetic fastening system offers a permanent solution to this problem. It creates a rigid, non-destructive, and infinitely adjustable seal. This seal holds formwork joints completely tight during the most aggressive compaction phases. It stops slurry bleeding immediately and directly reduces expensive rework costs. It protects your bottom line.
In this comprehensive guide, you will discover the underlying mechanics of magnetic joint sealing. We will explore how concentrated downward force prevents lateral formwork shifting. You will also learn practical evaluation criteria for selecting the perfect magnetic system for your facility. We will outline crucial maintenance protocols to ensure long-lasting performance.
Root Cause Elimination: Magnetic fastening prevents the micro-shifting of formwork during high-frequency vibration, which is the primary cause of cement slurry leakage.
Non-Destructive Sealing: Unlike welding or drilling, magnets maintain the integrity of the steel casting bed, ensuring a perfectly flat surface that prevents future joint gaps.
Evaluation Criteria: Selecting the right magnet requires matching the shear resistance and vertical pull force to the specific hydrostatic pressure of the concrete mix and formwork height.
Operational Risk: The effectiveness of shuttering magnets depends entirely on routine maintenance; concrete buildup on the magnetic core drastically reduces adhesion and causes unexpected joint failure.
Cement paste leakage fundamentally compromises the chemical integrity of your precast elements. When cement slurry bleeds through formwork seams, it alters the local water-cement ratio at the joint. The escaping fluid carries vital cementitious material away from the edges. This process leaves behind aggregate-heavy zones lacking proper binding agents. You typically observe this phenomenon as honeycombing or severe surface pitting.
This localized structural weakness threatens the durability of the entire concrete panel. It is never just a minor cosmetic defect. Weakened edges chip easily during transport and installation. They compromise the load-bearing capacity of the final assembled structure. Structural engineers often reject panels displaying significant honeycombing. These rejections force factories to discard expensive materials and restart production cycles entirely.
Beyond structural risks, joint leakage creates massive operational bottlenecks. You must factor in the hidden costs associated with every single pour. Labor hours drain away as workers tirelessly scrape dried cement from the casting beds. Operators spend countless hours operating heavy grinders to remove cured concrete fins. Applying cosmetic patches consumes valuable factory floor time. These manual repair steps slow down the entire manufacturing pipeline. They turn an automated, streamlined process into a painfully labor-intensive chore.
A successful joint-sealing solution must eliminate these specific hurdles. It must provide massive dynamic holding force against extreme vibration. Wet concrete shifts violently during mechanical compaction. Your fastening method must resist this energy effortlessly. Furthermore, it must allow for rapid, tool-free adjustments. Workers need a system they can lock and unlock in mere seconds. Speed and rigidity form the ultimate success criteria for modern precast fastening.

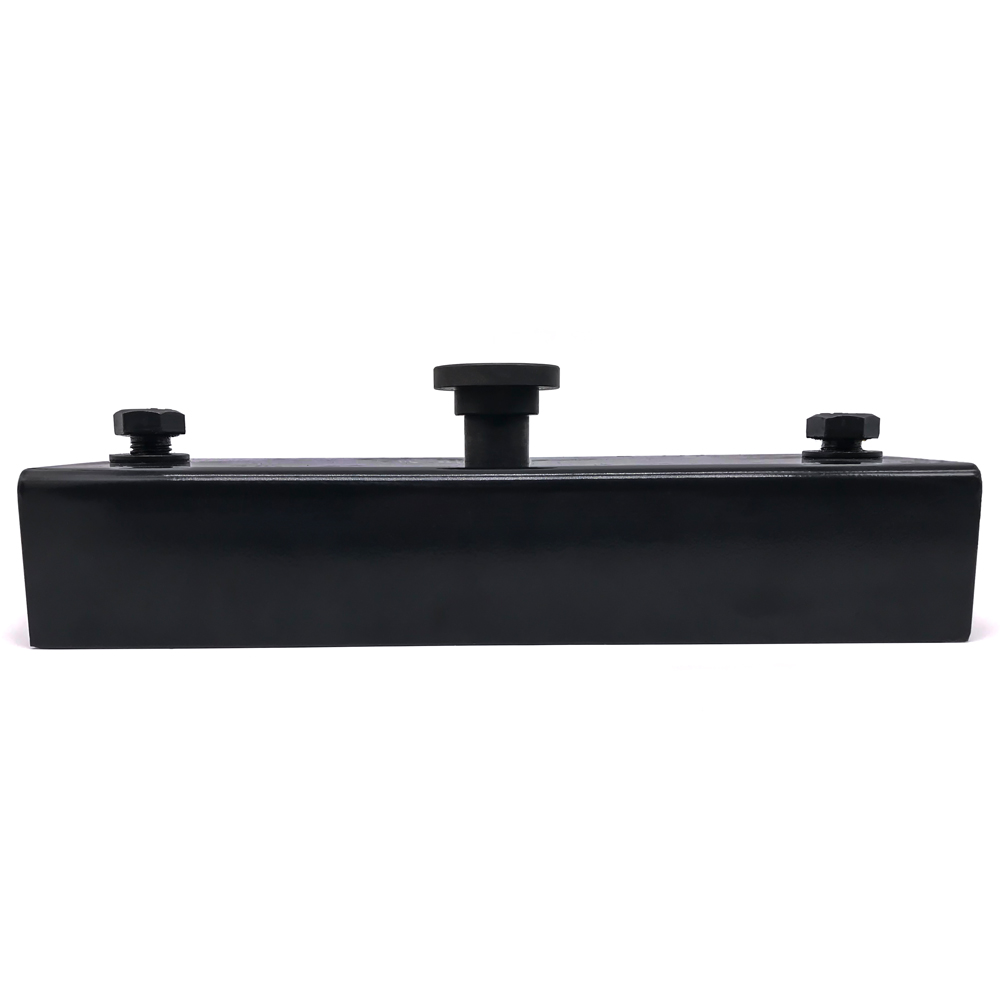

Understanding the mechanism of action requires a look inside the steel housing. A premium Building Shuttering Magnet utilizes a highly engineered neodymium magnetic circuit. When an operator engages the system, this internal circuit drops down to touch the steel table. The surrounding metal housing directs the magnetic flux straight downward. This engineering marvel delivers intensely concentrated downward pressure. It pins the formwork securely against the steel pallet. This immense pressure creates a seamless, gap-free contact line along the entire edge.
Downward pressure alone does not solve every problem. You must consider lateral shear resistance during the pouring phase. Wet concrete weight generates tremendous outward pressure against the formwork walls. Mechanical compactors amplify these lateral shear forces significantly. Inferior fasteners allow the formwork to slowly "walk" or shift outward. Magnets counteract this movement entirely. The massive friction generated by the vertical pull force translates into extreme shear resistance. They lock the side rails firmly in place. This absolute rigidity prevents the formwork seams from opening under load.
These primary holding devices provide the core structural stability. However, pairing them with magnetic chamfer strips yields optimal results. This synergy creates a completely watertight corner joint. Magnetic chamfer strips slide perfectly into the right angles of the formwork. They bridge any microscopic imperfections in the steel. You achieve perfectly angled edges without messy silicone sealants. Silicone degrades quickly and requires constant reapplication. Magnetic strips offer a permanent, reusable barrier against slurry leakage.
This combined approach guarantees crisp lines and flawless concrete finishes. You eliminate grinding and patching operations entirely. The magnetic fields work in harmony to lock every component into a unified, immovable barrier. The concrete stays exactly where it belongs.
You must evaluate several critical dimensions before purchasing new magnetic equipment. Load capacity and vertical pull force dictate overall performance. Proper sizing relies heavily on wall thickness and total pouring height. You cannot use a one-size-fits-all approach in precast production.
Standard panels usually require units featuring 900kg of pull force. However, massive retaining walls demand much higher capacities. Deep pours generate exponentially higher hydrostatic pressure at the base. You might need units rated for 2100kg to resist these massive forces. Over-sizing ensures safety, while under-sizing guarantees catastrophic joint blowouts.
Standard Minimum Pull Force Recommendations
Concrete Wall Thickness | Formwork Pouring Height | Recommended Vertical Pull Force |
|---|---|---|
Under 100mm | Up to 300mm | 900kg - 1000kg |
100mm to 200mm | 300mm to 600mm | 1350kg - 1800kg |
Over 200mm | Over 600mm | 2100kg and above |
Next, you must evaluate housing material durability carefully. Precast plant environments are exceptionally harsh. Carbon steel housings offer excellent structural strength and lower initial costs. They handle standard impacts quite well. Conversely, stainless steel housings provide superior longevity. They resist acidic concrete splatter much better than carbon steel. They also withstand daily hammer strikes and corrosive chemical cleaners. If your facility runs multiple daily shifts, stainless steel offers better long-term reliability.
Finally, meticulously evaluate the button and release mechanisms. The push-button engagement system requires extreme precision. A poorly machined button often leads to partial magnetic engagement. The core might not drop completely flat against the table. The unit feels secure initially, but it lacks its full rated pull force. This hidden defect leads to unexpected shifting during vibration.
Inspect the mechanical release lever tolerances closely. The lever must operate smoothly without requiring excessive physical exertion. Properly machined internal components guarantee consistent engagement every single time. High-quality Shuttering Magnets rely on these precise tolerances to function safely.
Even premium magnetic systems face severe operational risks on the factory floor. The biggest vulnerability remains the invisible air gap. Magnetic force drops exponentially when separated from the steel casting bed. The inverse square law of magnetism dictates this rapid loss of power.
Even a microscopic 1mm layer of cured cement dust causes sudden failure. This tiny gap drastically reduces magnetic adhesion. It compromises the entire structural seal instantly. Operators often blame the magnet for a blowout, but the dirty table usually causes the failure. You must keep the contact surface flawlessly clean before every single engagement.
Strict maintenance protocols prevent these unexpected failures. Post-pour cleaning routines are absolutely non-negotiable. Workers must remove wet concrete splatters immediately after stripping the forms. Operators should use proper brass or plastic scrapers to clean the magnet base. They must use compressed air wands to blast away hidden debris inside the housing. Regular application of non-corrosive form release agents is equally vital. These protective oils prevent concrete buildup on the sensitive magnetic core. They extend the product lifespan and guarantee maximum holding power.
Operator training represents another major implementation hurdle. Workers transitioning from traditional welding face a steep learning curve. Welding feels permanent, while magnets require precise handling. You must train operators on exact placement techniques. They need formal instruction on the correct use of mechanical release levers.
Prying a unit incorrectly damages the external housing permanently. Striking the activation button heavily with a steel hammer shatters the brittle neodymium core inside. You must provide rubber mallets and specialized lever tools. Education ensures your equipment survives the daily rigors of industrial production.
Framing the financial justification requires a clear Cost versus Savings analysis. High-quality magnetic systems require a notable initial capital expenditure. However, this upfront investment rapidly offsets operational expenses. Magnetic systems eliminate welding consumables like rods and gas entirely. They prevent the structural degradation of your expensive steel casting beds.
Most importantly, they drastically reduce manual labor hours dedicated to cosmetic rework. You no longer pay skilled workers to grind fins or patch honeycombing. The operational savings generated in the first six months often cover the initial equipment purchase.
Before requesting vendor specifications, run through this comprehensive pre-purchase checklist:
Audit your steel casting tables: Measure table thickness and verify surface flatness. Thin or warped steel tables reduce magnetic hold significantly.
Analyze vibration frequencies: High-frequency external vibrators demand much higher shear resistance from your fasteners.
Document formwork dimensions: Record your maximum pouring heights and concrete densities. These metrics dictate your minimum pull force requirements.
Review cleaning protocols: Assess whether your team possesses the right scrapers, compressed air lines, and release agents.
When vetting potential suppliers, you must demand absolute technical transparency. Ask vendors for officially certified pull-force test reports. Request detailed case studies demonstrating shear force resistance under actual precast plant conditions. Do not rely exclusively on theoretical laboratory numbers. The best suppliers will eagerly provide data proving their units hold firm during high-frequency vibration.
Modern shuttering magnets are not just basic fastening tools. They are precision quality-control devices engineered to optimize precast production. When properly sized and diligently maintained, they stop joint leakage directly at the source. They eliminate micro-gaps, resist massive shear forces, and protect your final concrete finish.
By transitioning away from destructive welding and manual clamping, you protect your casting beds. You also reclaim hundreds of labor hours previously lost to grinding and patching. The efficiency gains transform your production pipeline entirely.
We encourage technical buyers and plant managers to act decisively. Calculate your current rework costs per casting cycle today. Quantify the exact hours lost to cosmetic concrete repair. Once you understand these hidden expenses, consult with a specialized magnetic engineering vendor. Prototype a properly rated magnetic formwork solution tailored precisely to your manufacturing environment.
A: No, provided the vertical pull force and shear resistance are correctly calculated for the formwork mass and the table surface is clean and flat.
A: It depends on the formwork height and concrete density. Standard panels typically require magnets ranging from 900kg to 1000kg, while heavier elements may require 1800kg+ or multiple magnets in sequence.
A: Use a dedicated scraper to remove wet concrete immediately after pouring, apply an appropriate formwork release oil, and never use a steel hammer directly on the magnetic core.
